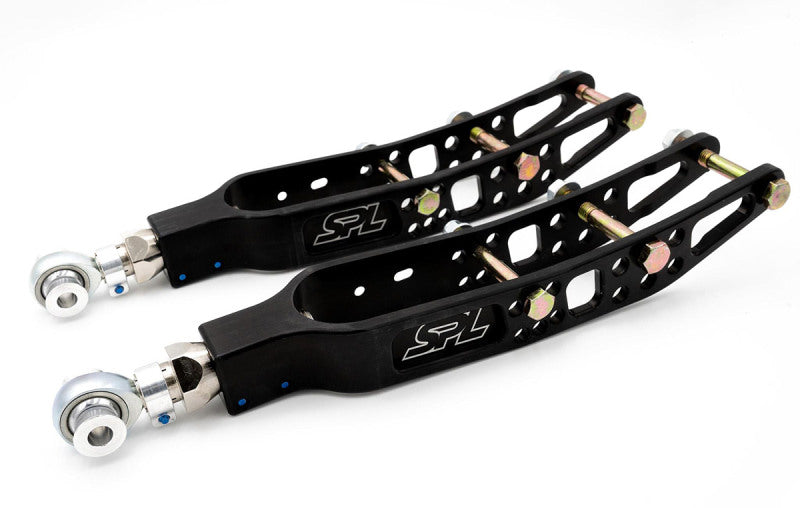

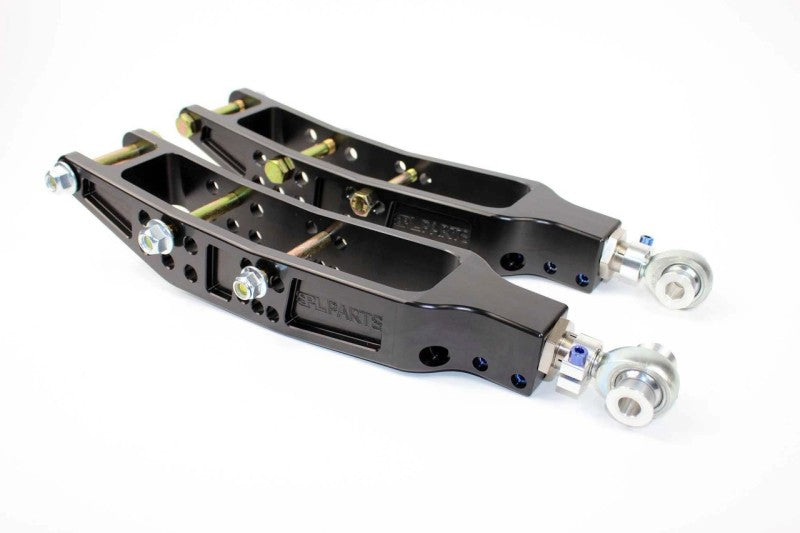

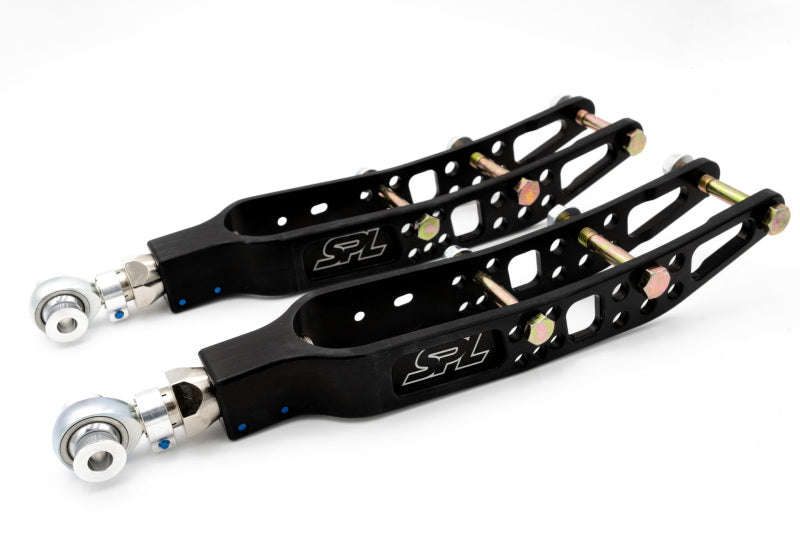

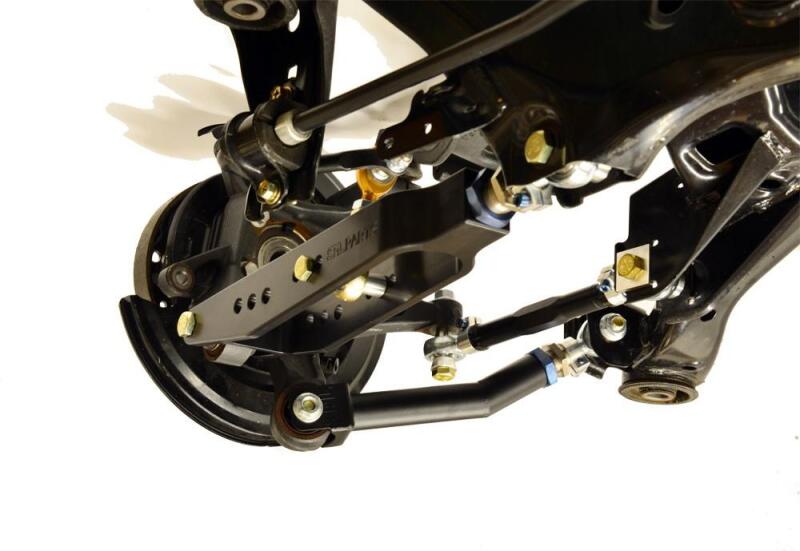

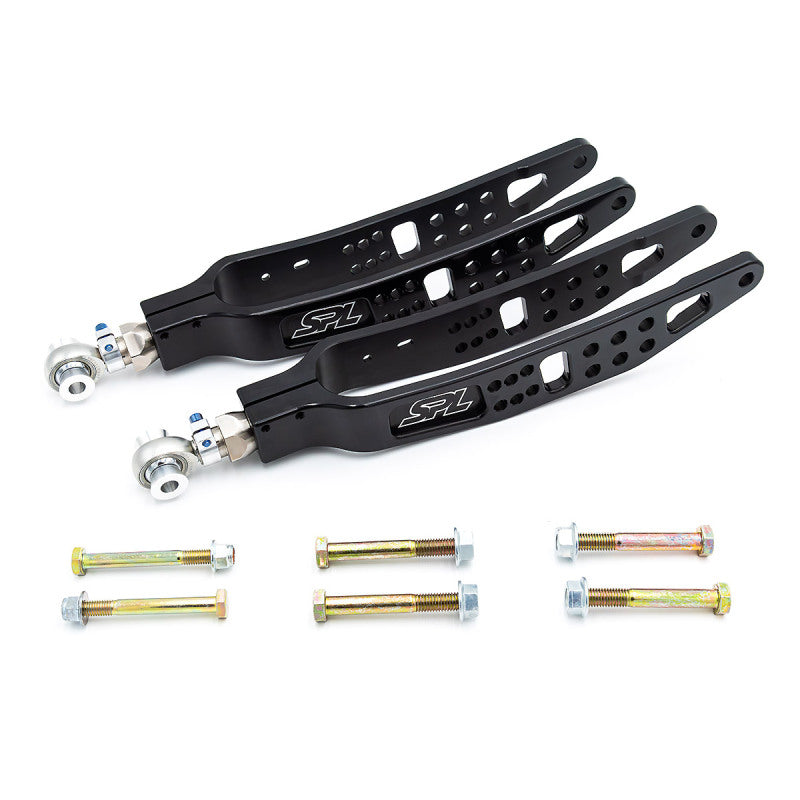

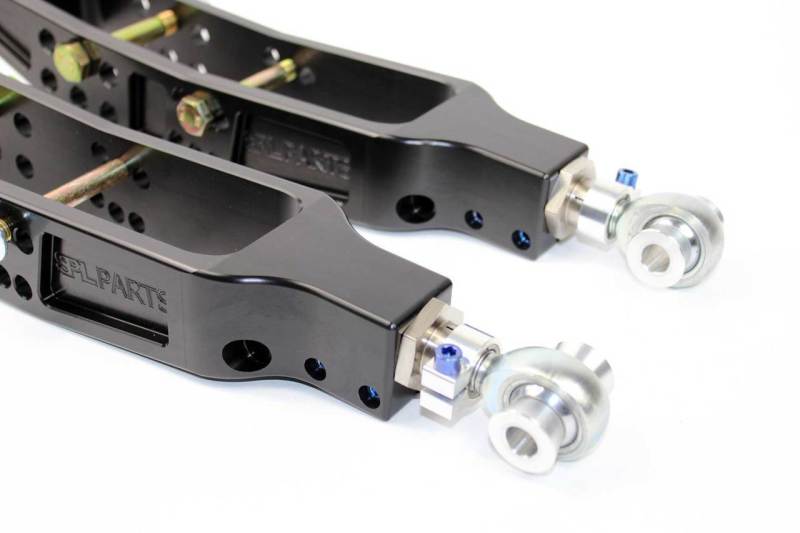

SPL adjustable Rear Lower Camber Arms (RLL) for the GR86/BRZ/WRX allow for adjustable camber, track, and installed motion ratios while significantly reducing the unwanted dynamic alignment change and binding that occurs with rubber or polyurethane bushings. The lower arm also handles the forces transmitted through the springs, shocks, and sway bar. By increasing the strength (rigidity) of the arm and using a spherical the rear suspension will have improved response, better lateral grip, and provide clearer feedback to the driver.
Adjustable Motion Ratios

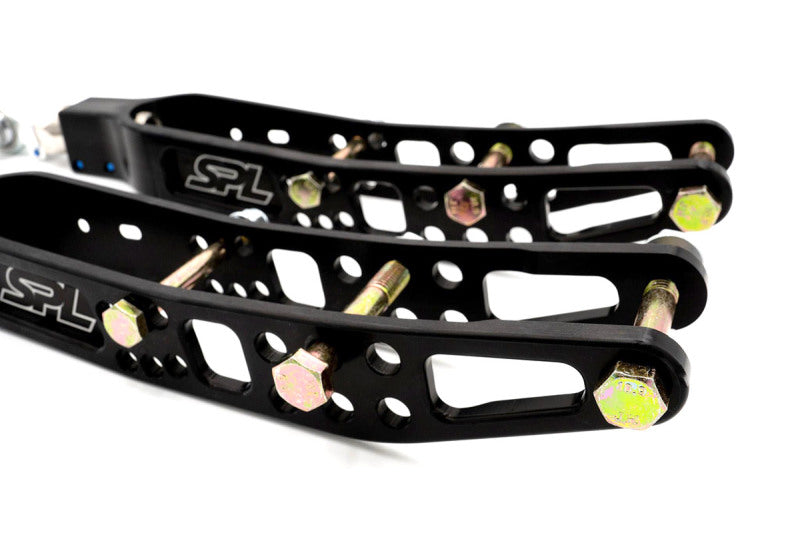

The three position mounting holes for the sway bar endlinks and shock mount allow you to adjust the mounting points to prevent endlink binding and quickly adjust motion ratios to change spring and sway bar effectiveness. Simply put, it's like having adjustable spring rates without a spring replacement. For example, a 6.0 kg/mm (336 lbs/in) main spring could act as a 6.8 (380 lbs/in), 6.0, or 5.2 kg/mm (294 lbs/in) spring, giving +/- 13% of adjustability. Likewise the sway bar endlink can be installed to act like a 0.5mm larger or smaller bar, so an 18mm bar would act like an 18.5mm, 18.0mm, or 17.5mm bar depending on setup (endlink geometry permitting).
Unrivaled Adjustability Range

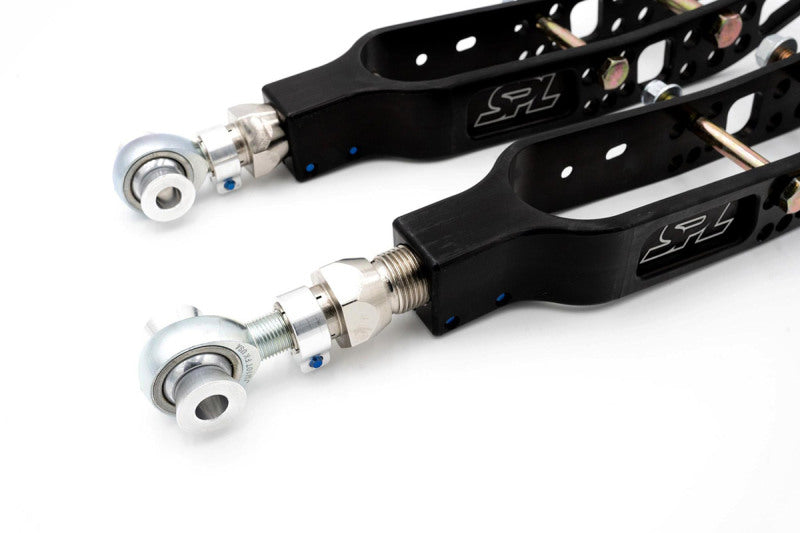

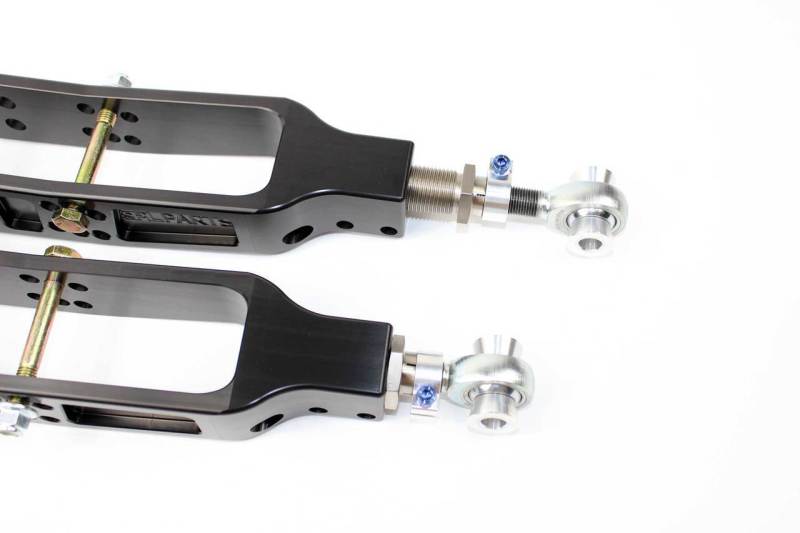

The large-diameter chromoly double adjuster and 5/8" (15.8mm) rod end allows for up to 1.375" (35mm) of total length adjustment, a 50% increase compared to many other options on the market.
Benefits
Large Range of Camber and Motion Ratio Adjustability
Lightweight: 3.57 lbs (1.62 kg) per Arm (17% Lighter than OEM)
Eliminates Camber Loss to Bushing Deflection
Improves Suspension Response and Driving Feel
Easier, On-Car Adjustment + No Jam Nuts
Self-Cleaning, US Made, PTFE-Lined FK Bearings
Materials
6061-T6 Aluminum Arms (Anodized Black)
6061-T6 Aluminum Spacers and 360? Clamps
4130 Chromoly Steel Double Adjuster (Electroless Nickel Plated)
Ti-6Al-4V Titanium 1/4-20 Socket Head Allen Screws (Anodized Blue)
SPL FR-S / BRZ / GT86 Rear Adjustable Camber Arms
Fitment:
2008 Subaru Impreza WRX
2008 Subaru Impreza WRX STI
2009 Subaru Impreza WRX
2009 Subaru Impreza WRX STI
2010 Subaru Impreza WRX
2010 Subaru Impreza WRX STI
2011 Subaru Impreza WRX
2011 Subaru Impreza WRX STI
2012 Subaru Impreza WRX
2012 Subaru Impreza WRX STI
2013 Scion FR-S Base
2013 Subaru BRZ Limited
2013 Subaru BRZ Premium
2013 Subaru Impreza WRX
2013 Subaru Impreza WRX STI
2014 Scion FR-S Base
2014 Subaru BRZ Limited
2014 Subaru BRZ Premium
2014 Subaru Impreza WRX
2015 Scion FR-S Base
2015 Subaru BRZ Limited
2015 Subaru BRZ Premium
2015 Subaru BRZ Series.Blue
2015 Subaru WRX Base
2015 Subaru WRX Limited
2015 Subaru WRX Premium
2015 Subaru WRX STI Base
2015 Subaru WRX STI Launch Edition
2015 Subaru WRX STI Limited
2016 Scion FR-S Base
2016 Subaru BRZ Limited
2016 Subaru BRZ Premium
2016 Subaru BRZ Series.HyperBlue
2016 Subaru WRX Base
2016 Subaru WRX Limited
2016 Subaru WRX Premium
2016 Subaru WRX STI Base
2016 Subaru WRX STI Limited
2016 Subaru WRX STI Series.HyperBlue
2017 Subaru BRZ Limited
2017 Subaru BRZ Premium
2017 Subaru BRZ Series.Yellow
2017 Subaru WRX Base
2017 Subaru WRX Limited
2017 Subaru WRX Premium
2017 Subaru WRX STI Base
2017 Subaru WRX STI Limited
2017 Toyota 86 Base
2017 Toyota 86 Special Edition
2018 Subaru BRZ Limited
2018 Subaru BRZ Premium
2018 Subaru BRZ TS
2018 Subaru WRX Base
2018 Subaru WRX Limited
2018 Subaru WRX Premium
2018 Subaru WRX STI Base
2018 Subaru WRX STI Limited
2018 Subaru WRX STI Type RA
2018 Toyota 86 Base
2018 Toyota 86 GT
2019 Subaru BRZ Limited
2019 Subaru BRZ Premium
2019 Subaru BRZ Series.Gray
2019 Subaru WRX Base
2019 Subaru WRX Limited
2019 Subaru WRX Premium
2019 Subaru WRX STI Base
2019 Subaru WRX STI Limited
2019 Subaru WRX STI S209
2019 Toyota 86 Base
2019 Toyota 86 GT
2019 Toyota 86 TRD Special Edition
2020 Subaru BRZ Limited
2020 Subaru BRZ TS
2020 Subaru WRX Base
2020 Subaru WRX Limited
2020 Subaru WRX Premium
2020 Subaru WRX STI Base
2020 Subaru WRX STI Limited
2020 Toyota 86 Base
2020 Toyota 86 GT
2020 Toyota 86 Hakone Edition
2021 Subaru WRX Base
2021 Subaru WRX Limited
2021 Subaru WRX Premium
2021 Subaru WRX STI Base
2021 Subaru WRX STI Limited
2022 Toyota GR86 Base
2022 Toyota GR86 Premium
2023 Toyota GR86 10th Anniversary Special Edition
2023 Toyota GR86 Base
2023 Toyota GR86 Premium
2024 Toyota GR86 Base
2024 Toyota GR86 Premium
