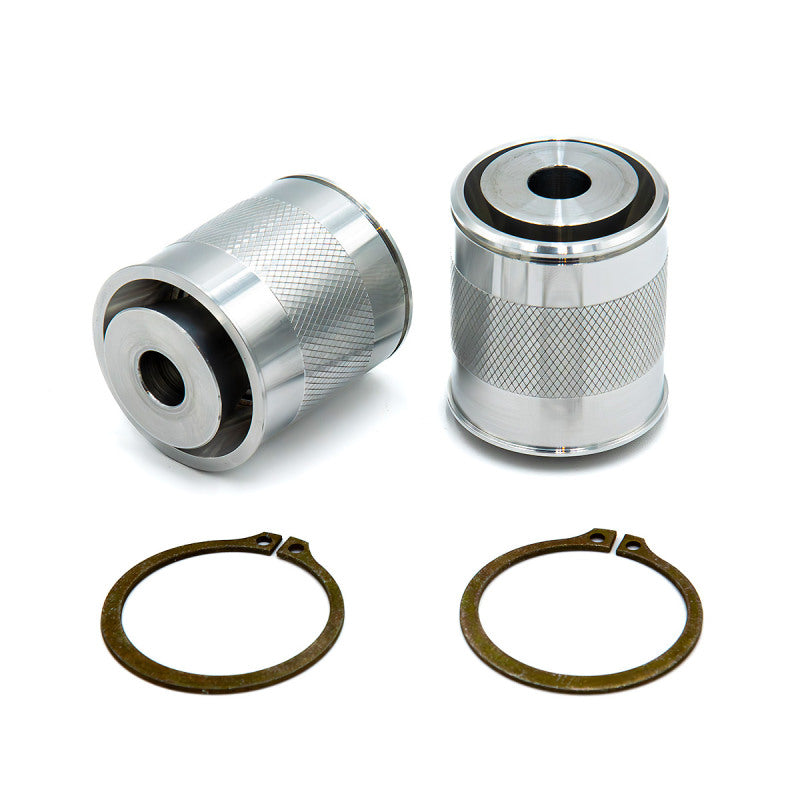

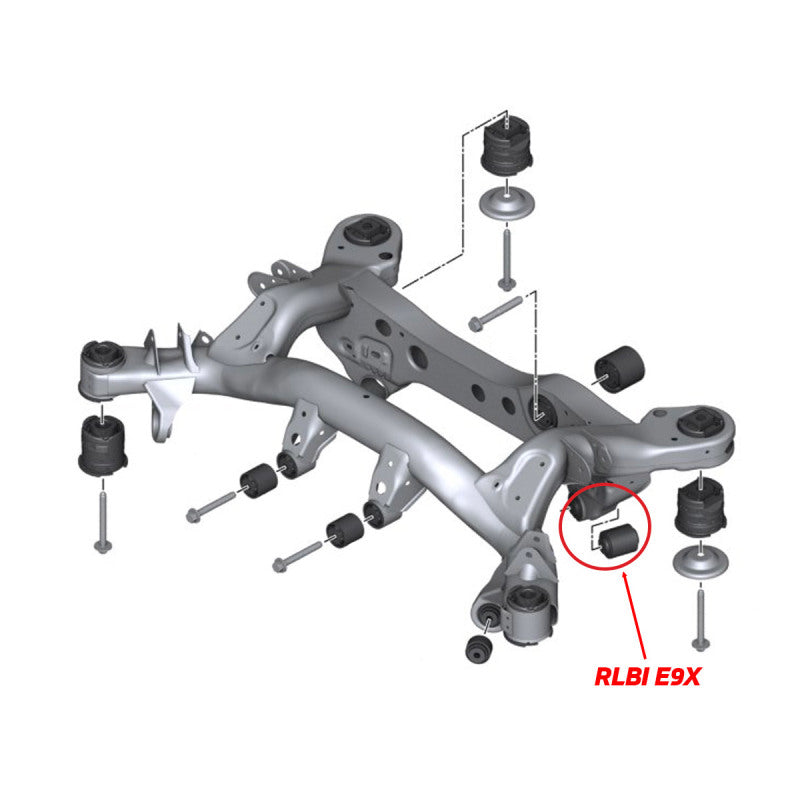

These rear lower control arm inner bushings replace the large rubber OEM bushing attaching the lower control arm to the subframe with a low-friction, PTFE-lined spherical bearing. Replacing the OEM component with this bushing eliminates deflection and binding under heavy load, preserving your desired camber and toe geometry under bump, and greatly reduces friction as the arm travels through it's range of motion. To increase longevity and reduce NVH, we use the largest possible spherical bearing with the tightest fit available by FK.
Benefits
Improved Rear Cornering Grip
Eliminates OEM Bushing Deflection and Binding
Precise Dynamic Geometry, Stability, and Handling
Maintenance-Free, US Made, PTFE-Lined FK Bearings
Materials

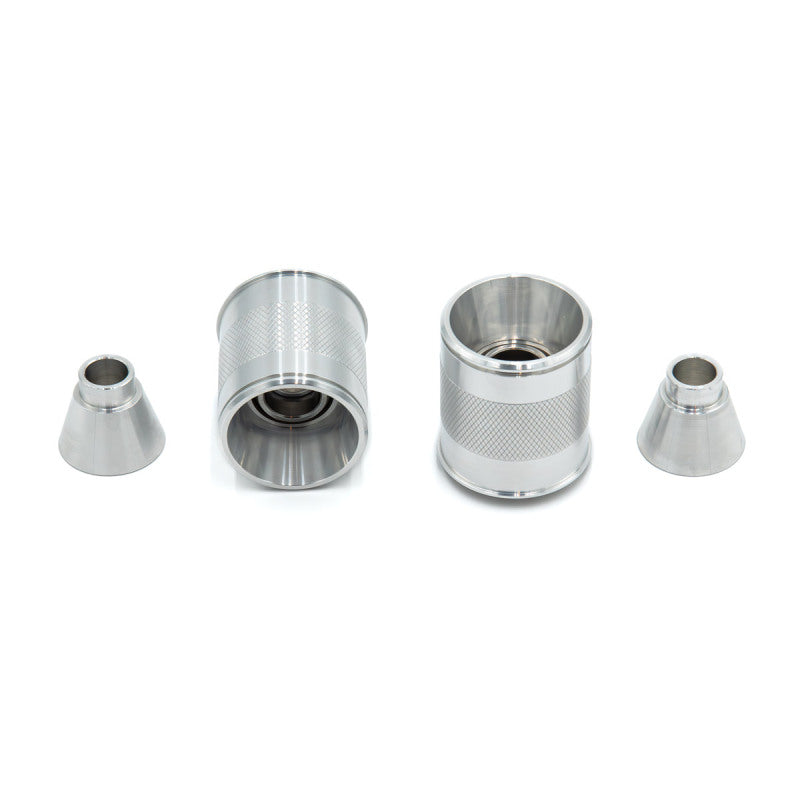

6061-T6 aluminum bearing shells and spacers
FK PTFE-lined spherical bearings (F1 spec, self-cleaning)
Sold as a pair.
Confirmed Applications
2006 - 2013 E80, E82, E82M (1-Series, 1-Series M)
2006 - 2013 E90, E91, E92, E93 (3-Series, M3)
2014 - 2021 F80, F82, F83, F87 (M2, M3, M4)
Replaces OEM Part Number
33326770829
Installation Instructions
Coming Soon
SPL BMW E8X/E9X/F8X Rear Lower Control Arm Spherical Inner Bushing
Fitment:
2006 BMW 325i Base
2006 BMW 325xi Base
2006 BMW 330i Base
2006 BMW 330xi Base
2007 BMW 328i Base
2007 BMW 328xi Base
2007 BMW 335i Base
2007 BMW 335xi Base
2008 BMW 128i Base
2008 BMW 135i Base
2008 BMW 328i Base
2008 BMW 328xi Base
2008 BMW 335i Base
2008 BMW 335xi Base
2008 BMW M3 Base
2009 BMW 128i Base
2009 BMW 135i Base
2009 BMW 328i Base
2009 BMW 328i xDrive Base
2009 BMW 335d Base
2009 BMW 335i Base
2009 BMW 335i xDrive Base
2009 BMW M3 Base
2010 BMW 128i Base
2010 BMW 135i Base
2010 BMW 328i Base
2010 BMW 328i xDrive Base
2010 BMW 335d Base
2010 BMW 335i Base
2010 BMW 335i xDrive Base
2010 BMW M3 Base
2011 BMW 1 Series M Base
2011 BMW 128i Base
2011 BMW 135i Base
2011 BMW 328i Base
2011 BMW 328i xDrive Base
2011 BMW 335d Base
2011 BMW 335i Base
2011 BMW 335i xDrive Base
2011 BMW 335is Base
2011 BMW M3 Base
2012 BMW 128i Base
2012 BMW 135i Base
2012 BMW 328i Base
2012 BMW 328i xDrive Base
2012 BMW 335i Base
2012 BMW 335i xDrive Base
2012 BMW 335is Base
2012 BMW M3 Base
2013 BMW 128i Base
2013 BMW 135i Base
2013 BMW 135is Base
2013 BMW 328i Base
2013 BMW 328i xDrive Base
2013 BMW 335i Base
2013 BMW 335i xDrive Base
2013 BMW 335is Base
2013 BMW M3 Base
2015 BMW M3 Base
2015 BMW M4 Base
2016 BMW M2 Base
2016 BMW M3 Base
2016 BMW M4 Base
2016 BMW M4 GTS
2017 BMW M2 Base
2017 BMW M3 Base
2017 BMW M4 Base
2018 BMW M2 Base
2018 BMW M3 Base
2018 BMW M4 Base
2019 BMW M2 Competition
2019 BMW M4 Base
2019 BMW M4 CS
2020 BMW M2 Competition
2020 BMW M2 CS
2020 BMW M4 Base
2020 BMW M4 CS
2021 BMW M2 Competition
